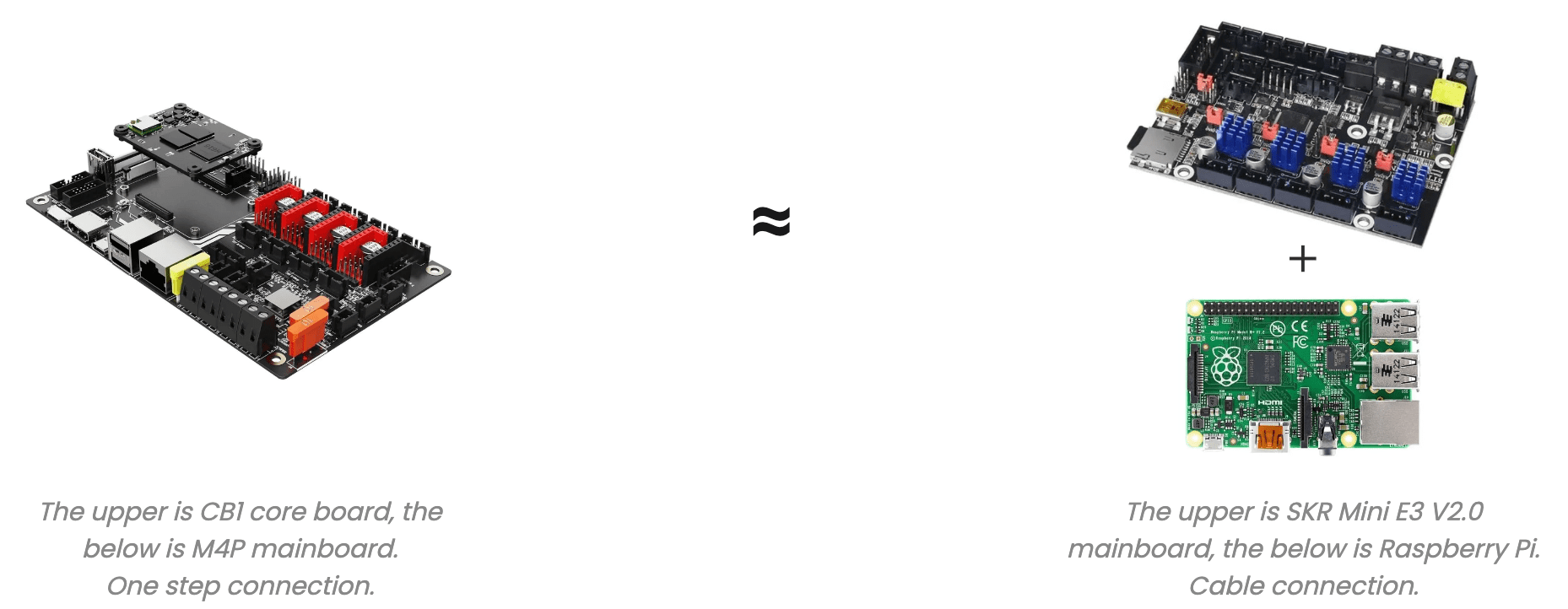

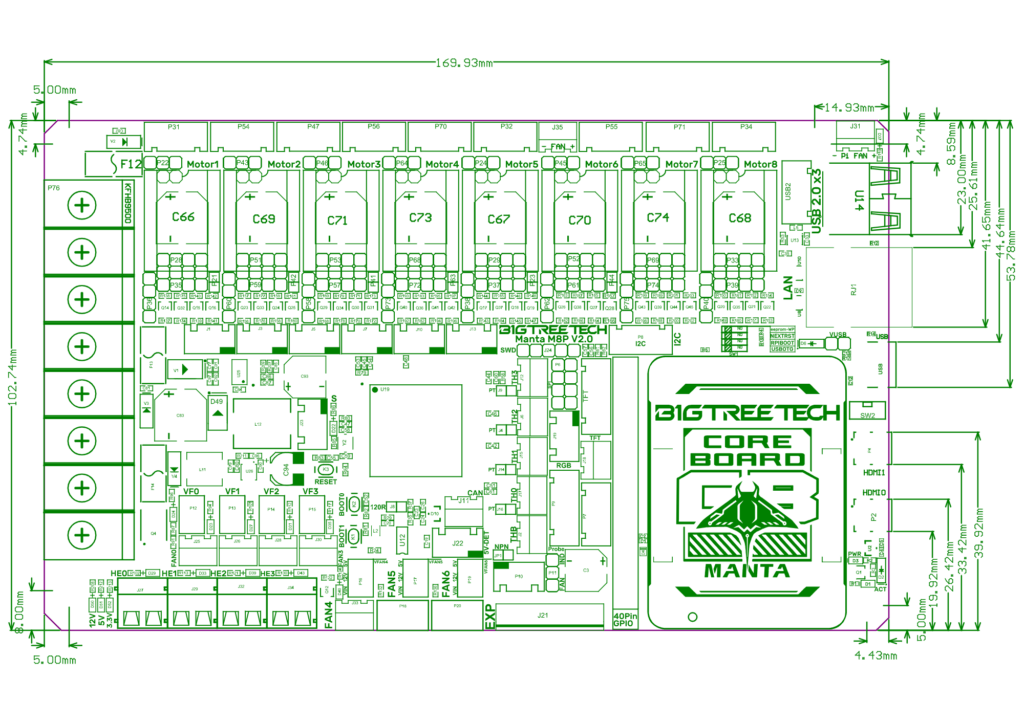

Bigtreetech Manta M8P / M5P / M4P / E3EZ: Review and Complete Guide - 3DWork (2024)

It is advisable, and not only for aesthetics, to get the heatsink as it will significantly improve the performance of the CB1

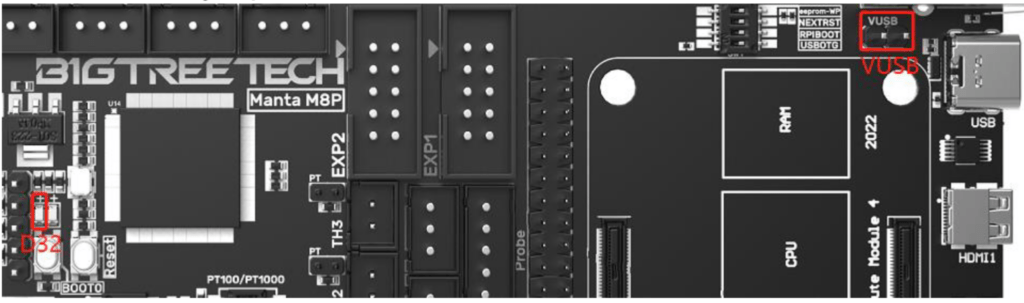

We remind you that in USB charging certain functions are NOT available such as moving motors, communication with smart drivers, heaters, etc…

It is very important to make sure that the orientation of the CM4 module is correct.

• If we use aBigtreetech CB1 module

• For aRaspberry CM4 module

• If we use aBigtreetech CB1 module

• For aRaspberry CM4 module

• If we use aBigtreetech CB1 module

• For aRaspberry CM4 module

• If we use aBigtreetech CB1 module

• For aRaspberry CM4 module

In case our drivers support it, theideal is always to use the intelligent SPI/UART management mode, one or the other will depend on the model of drivers we use.

These driver management modesallow the firmware to dynamically manage the driver configuration according to needs, as well as being able to adjust, for example, the vref/current that will be supplied to our motors and other functions available in each driver model.

• UART,is a type of serial communication between the electronics and the firmware to be able to manage the driver…Supported by drivers TMC2208, TMC2209, TMC2225by way of example.To activate this mode we will simply place the jumper in the position of the following image and make sure that our driver supports and has enabled that mode (although they usually come already prepared sometimes it is necessary to perform a solder or put a jumper in it):

• SPI, another type of communication more advanced than UART because it has more bandwidth andis supported by TMC2130, TMC5160, TMC5161 driversas examples.As in the previous case, we will enable it by placing jumpers as we see in the following image:

Finally, we have the traditional method or STEP/DIR (STANDALONE) that uses the default settings of the driver, we will have to adjust the view/current of the motors manually and specify the microsteps of it using the appropriate combination of the MS0/MS1/MS2 jumpers.Normally we will use this mode for older A4988, DRV8825, LV8729, ST820 drivers:

In case our drivers support it, theideal is always to use the intelligent SPI/UART management mode, one or the other will depend on the model of drivers we use.

These driver management modesallow the firmware to dynamically manage the driver configuration according to needs, as well as being able to adjust, for example, the vref/current that will be supplied to our motors and other functions available in each driver model.

• UART,is a type of serial communication between the electronics and the firmware to be able to manage the driver…Supported by drivers TMC2208, TMC2209, TMC2225by way of example.To activate this mode we will simply place the jumper in the position of the following image and make sure that our driver supports and has enabled that mode (although they usually come already prepared sometimes it is necessary to perform a solder or put a jumper in it):

• SPI, another type of communication more advanced than UART because it has more bandwidth andis supported by TMC2130, TMC5160, TMC5161 driversas examples.As in the previous case, we will enable it by placing jumpers as we see in the following image:

Finally, we have the traditional method or STEP/DIR (STANDALONE) that uses the default settings of the driver, we will have to adjust the vref/current of the motors manually and specify the microsteps of it using the appropriate combination of the MS0/MS1/MS2 jumpers.Normally we will use this mode for older A4988, DRV8825, LV8729, ST820 drivers:

In case our drivers support it, theideal is always to use the intelligent SPI/UART management mode, one or the other will depend on the model of drivers we use.

These driver management modesallow the firmware to dynamically manage the driver configuration according to needs, as well as being able to adjust, for example, the vref/current that will be supplied to our motors and other functions available in each driver model.

• UART,is a type of serial communication between the electronics and the firmware to be able to manage the driver…Supported by drivers TMC2208, TMC2209, TMC2225by way of example.To activate this mode we will simply place the jumper in the position of the following image and make sure that our driver supports and has enabled that mode (although they usually come already prepared sometimes it is necessary to perform a solder or put a jumper in it):

• SPI, another type of communication more advanced than UART because it has more bandwidth andis supported by TMC2130, TMC5160, TMC5161 driversas examples.As in the previous case, we will enable it by placing jumpers as we see in the following image:

Finally, we have the traditional method or STEP/DIR (STANDALONE) that uses the default settings of the driver, we will have to adjust the vref/current of the motors manually and specify the microsteps of it using the appropriate combination of the MS0/MS1/MS2 jumpers.Normally we will use this mode for older A4988, DRV8825, LV8729, ST820 drivers:

All Manta versions have double motor output for the Z axis, so if our machine has dual Z motors, and we don’t want to put them on independent drivers…
something that if you can and have a leveling sensor is more than advisable, we can connect both motors to the electronics without the need to use double connection Y cables.

IMPORTANT:

For a connection of our drivers/motors to the general power supply (12/24V):

In the case of using HV drivers/motors, we remind you that these electronics support power up to 56V which we will connect to the HV-IN power connection:

For a connection of our drivers/motors to the general power supply (12/24V):

In the case of using HV drivers/motors, we remind you that these electronics support up to 56V:

For a connection of our drivers/motors to the general power supply (12/24V):

In the case of using HV drivers/motors, we remind you that these electronics support up to 56V:

For a connection of our drivers/motors to the general power supply (12/24V):

In the case of using HV drivers/motors, we remind you that these electronics support up to 56V:

In the case of the M8P model, we have:

• 2 Pin PWM Fan x 4
• 4-pin PWM Fan (4-pin PWM fan with tachometer) x 3

We have a 5/12/24V power selection jumper:

Also for 4-pin fans you have the following connection diagram:

In the case of the M5P model, we have:

• 2 pin PWM Fan x 3

We have a 5/12/24V power selection jumper:

In the case of the M4P model, we have:

• 2 pin PWM Fan x 3

We have a jumper for the selection of 12/24V, depending on the power supply of our electronics, or 5V.

In the case of the E3EZ model, we have:

• 2 pin PWM Fan x 3

In the case that we use a mechanical sensor type Bltouch:

In the case that we use a proximity sensor, we have a jumper to select power and one to indicate if the sensor needs Pull-Up:

• NPN (always on) we will connect it in the following way, it is important to check the power jumper (in the example at 24v):

• PNP (always off) we will connect it following the following scheme, it is important to check the power jumper (in the example at 24v) and to place the Pull-Up jumper:

In the case that we use a mechanical sensor type Bltouch:

In the case that we use a proximity sensor, we have a jumper to select power and one to indicate if the sensor needs Pull-Up:

• NPN (always on) we will connect it in the following way, it is important to check the power jumper (in the example at 24v):

• PNP (always off) we will connect it following the following scheme, it is important to check the power jumper (in the example at 24v) and to place the Pull-Up jumper:

In the case that we use a mechanical sensor type Bltouch:

In the case that we use a mechanical sensor type Bltouch:

There are two types of simple filament sensors:

You can install an accelerometer directly to your M8P as follows:

[adxl345]cs_pin: PC4 # PB15 for V1.0spi_bus: spi1#spi_software_sclk_pin: PA5#spi_software_mosi_pin: PA7#spi_software_miso_pin: PA6

You can install an accelerometer directly to your M4P as follows:

[adxl345]cs_pin: PD9spi_bus: spi1#spi_software_sclk_pin: PA5#spi_software_mosi_pin: PA7#spi_software_miso_pin: PA6

You can install an accelerometer directly to your E3 EZ as follows:

[adxl345]cs_pin: PC15spi_bus: spi1#spi_software_sclk_pin: PC10#spi_software_mosi_pin: PC12#spi_software_miso_pin: PC11

The M8P supports a wide range of LCD displays with two EXP connectors:

The M5P supports a wide range of LCD displays with two EXP connectors:

The M4P supports a wide range of LCD displays with two EXP connectors:

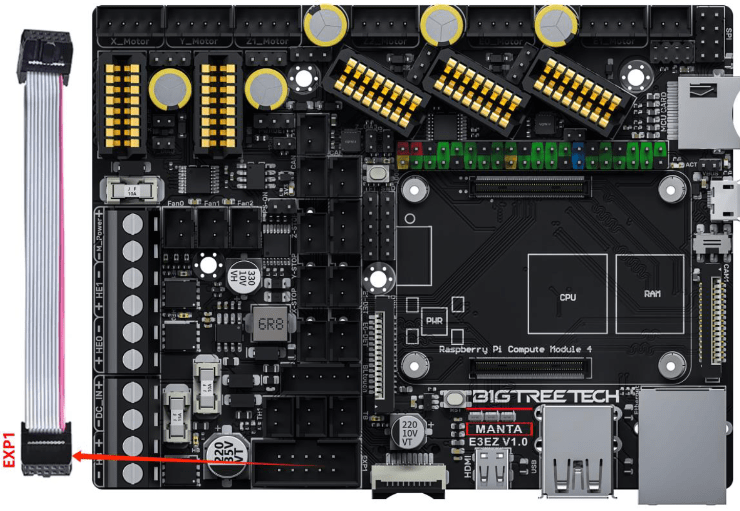

In the case of the E3EZ we have a single EXP connector, of the EXP3 type that is used in Creality printers, and that in a single connector has all the wiring for all the functions of this type of screen.

In this case, the M8P has a DSI connector for displays and a CSI connector for cameras of this type:

In the case of DSI, if we use CM4 as a host whose default interface is HDMI, we will need to unload the DSI1 driver using the following command from SSH:

sudo wget https://datasheets.raspberrypi.com/cmio/dt-blob-disp1-cam1.bin -O /boot/dt-blob.bin

Once the change is applied we will restart our host and we should have an image on our DSI screen.If you want to use HDMI again, all you have to do is remove //boot/dt-blob.binfrom your system and the HDMI output will work as it did before.

In this case, the M5P has a DSI connector for displays and a CSI connector for cameras of this type:

In the case of DSI, if we use CM4 as a host whose default interface is HDMI, we will need to unload the DSI1 driver using the following command from SSH:

sudo wget https://datasheets.raspberrypi.com/cmio/dt-blob-disp1-cam1.bin -O /boot/dt-blob.bin

Once the change is applied we will restart our host and we should have an image on our DSI screen.If you want to use HDMI again, all you have to do is remove //boot/dt-blob.binfrom your system and the HDMI output will work as it did before.

In this case, the M4P has a DSI connector for displays and a CSI connector for cameras of this type:

In the case of DSI, if we use CM4 as a host whose default interface is HDMI, we will need to unload the DSI1 driver using the following command from SSH:

sudo wget https://datasheets.raspberrypi.com/cmio/dt-blob-disp1-cam1.bin -O /boot/dt-blob.bin

Once the change is applied we will restart our host and we should have an image on our DSI screen.If you want to use HDMI again, all you have to do is remove //boot/dt-blob.binfrom your system and the HDMI output will work as it did before.

We also have support for SPI displays:

In this case, the E3 EZ has a DSI connector for displays and a CSI connector for cameras of this type:

In the case of DSI, if we use CM4 as a host whose default interface is HDMI, we will need to unload the DSI1 driver using the following command from SSH:

sudo wget https://datasheets.raspberrypi.com/cmio/dt-blob-disp1-cam1.bin -O /boot/dt-blob.bin

Once the change is applied we will restart our host and we should have an image on our DSI screen.If you want to use HDMI again, all you have to do is remove //boot/dt-blob.binfrom your system and the HDMI output will work as it did before.

On the M8P we have two connections dedicated to the management of neopixel LED strips:

On the M5P we have two connections dedicated to the management of neopixel LED strips:

On the M4P we have two connections dedicated to the management of neopixel LED strips:

On the E3 EZ we have a connection dedicated to the management of neopixel LED strips:

IMPORTANT!!!

We will then proceed toinstall the Klipper system in our CB1 module, we have two options:

• Use thegeneric distribution of Bigtreetech, you can download it fromhere.
• UsingRatOSyou have some advantages, and disadvantages depending on your level ofKlipperknowledge, such as the pre-installation of various components, compatibility with various electronics and printers with pre-configured and default macros.You can download it fromhere.

Once we have our image:

• Once you’ve downloaded the Klipper distribution you like the most, you’ll useRaspberry Pi ImagerorbalenaEtcherto transfer theKlipperimage to yourSD card.A card of at least 16-32Gb is advisable.For this guide, we’ll useRatOS, which is theKlipperdistribution we usually use.

• Once the process is finished and from our computer’s explorer we will access our SD where we will have apartition called BOOT.
• The WiFi configuration, in case you don’t use your CB1 with a network cable, we will return to oursystem.cfg filewhere we will adjust our WIFI_SSID and WIFI_PASSWD:

• Next, we’re going to configure the specific options for our CB1, which in this case we’ll do on ourBoardEnv.txt file, where we’ll adjust the following:

  console=display–With this configuration theUART0port of the CB1 will be used as the console port for the use of serial clients such as MobaXeterm for debugging.If we want to useUART0to control our electronics from Klipper, we must setconsole=serialand Klipper can use //dev/ttsyS0as a serial ID to connect with our electronics
  extraargs=video: normally our CB1 will detect the resolution of a screen connected by HDMI, in the cases that this does not work correctly we can specify the resolution using: extraargs=video=HDMI-A-1:1024×600-24@60 example for a BTT-HDMI7 (1024×600)extraargs=video=HDMI-A-1:800x480-24@60example for a BTT-HDMI5 (extraargs=video=HDMI-A-1:1024x600-24@60)
  overlays=tft35_spi: if you have a TFT35 SPI display
  overlays=mcp2515: in case we want to enable support for CANbus over SPI
  IMPORTANT!!!the use of CANbus and the SPI port of the CB1 cannot be used simultaneously on the same bus without multiplexing.

SPI1_CLK=PH6SPI1_MISO=PH8SPI1_MOSI=PH7TFT35_SPI_CS=PC7MCP2515_CS=PC11MCP2515_IRQ=PC9

CM4 modules typically come in two storage formats, using traditional SD or using built-in eMMC storage.In the following image you have the different versions and how to identify them:

We will then proceed toinstall the Klipper system on our CM4 module with SD,we have two options:

• Use the genericdistribution of MainsailOSfrom thefollowing link
• UsingRatOSyou have some advantages, and disadvantages depending on your level ofKlipperknowledge, such as the pre-installation of various components, compatibility with various electronics and printers with pre-configured and default macros.You can download itfrom here.

Once you’ve downloaded theKlipperdistribution you like the most…

• We will useRaspberry Pi ImagerorbalenaEtcherto transfer theKlipperimage to our SD card.A card of at least 16-32Gb is advisable.For this guide, we’ll useRatOS, which is theKlipperdistribution we usually use.

• During the process, before installing the image on our SD we can see an icon at the bottom right from which we can access the pre-configuration of some options, of which we advise you only to adjust:
  • hostname: will be the display name or access name from our network instead of the IP, by default raspberrypi.local
  • wireless: we can leave pre-configured our WiFi access data, SSID or the identifier/name of our network and the access password
  • ssh, it is advisable to enable it, although normally the images we have suggested already have it

• We will follow the process:

​

​

In the case that we have a CM4 module with eMMC storage, it is slightly different since we will first have to “mount” this storage on our computer so thatRaspberry Pi ImagerorbalenaEtcherhave access to it to install the system image.

• The first step will be to install therpibootutility (available forWindowsandLinux/MacOS)
• We will activate in our electronics the USB OTG mode (normally switch 4) and BOOT (switch 3) to enter the BOOT mode, the way to enter this is usually through the microswitches that we can find near the module.By way of example:

• Once we have the microswitches in BOOT mode, we will connect the electronics to our computer with the USB-C cable (it is usually advisable that it is also powered by the printer’s power supply since some computers may not supply the necessary power for the CM4/electronics to work properly) and we will launch therpibootutility.
• If everything has gone correctly, our computer will detect our CM4 as a storage unit and we can follow the previous process to copy the image fromRaspberry Pi ImagerorbalenaEtcher.

To be able to use Klipper on our M8P v2.x we first need to create, apply the Klipper firmware to it and get the serial ID to include in our Klipper configuration (printer.cfg).

• We will connect to our host (CB1/CM4) using an SSH client (Putty, Terminals, MobaXterm, etc…) and launch the following commands:

 cd ~/klipper make clean make menuconfig

• A menu will appear to select the options that our Klipper firmware will have, in the case of the M8P we will leave it as we see in the following image:

• Once the options are selected, press theQkey to exit the menu andYesto save the settings.

To be able to use Klipper on our M8P v1.x we first need to create, apply the Klipper firmware to it and get the serial ID to include in our Klipper configuration (printer.cfg).

• We will connect to our host (CB1/CM4) using an SSH client (Putty, Terminals, MobaXterm, etc…) and launch the following commands:

 cd ~/klipper make clean make menuconfig

• A menu will appear to select the options that our Klipper firmware will have, in the case of the M8P we will leave it as we see in the following image:

• Once the options are selected, press theQkey to exit the menu andYesto save the settings.

To be able to use Klipper on our M5P we first need to create, apply the Klipper firmware to it and get the serial ID to include in our Klipper configuration (printer.cfg).

• We will connect to our host (CB1/CM4) using an SSH client (Putty, Terminals, MobaXterm, etc…) and launch the following commands:

 cd ~/klipper make clean make menuconfig

• A menu will appear to select the options that our Klipper firmware will have, in the case of the M5P we will leave it as we see in the following image:

• Once the options are selected, press theQkey to exit the menu andYesto save the settings.

To be able to use Klipper on our M4P we first need to create, apply the Klipper firmware to it and get the serial ID to include in our Klipper configuration (printer.cfg).

• We will connect to our host (CB1/CM4) using an SSH client (Putty, Terminals, MobaXterm, etc…) and launch the following commands:

 cd ~/klipper make clean make menuconfig

• A menu will appear to select the options that our Klipper firmware will have, in the case of the M4P we will leave it as we see in the following image:

• Once the options are selected, press theQkey to exit the menu andYesto save the settings.

To be able to use Klipper on our E3 EZ we first need to create, apply the Klipper firmware to it and get the serial ID to include in our Klipper configuration (printer.cfg).

• We will connect to our host (CB1/CM4) using an SSH client (Putty, Terminals, MobaXterm, etc…) and launch the following commands:

 cd ~/klipper make clean make menuconfig

• A menu will appear to select the options that our Klipper firmware will have, in the case of the E3 EZ we will leave it as we see in the following image:

• Once the options are selected, press theQkey to exit the menu andYesto save the settings.

DFU MODE:
